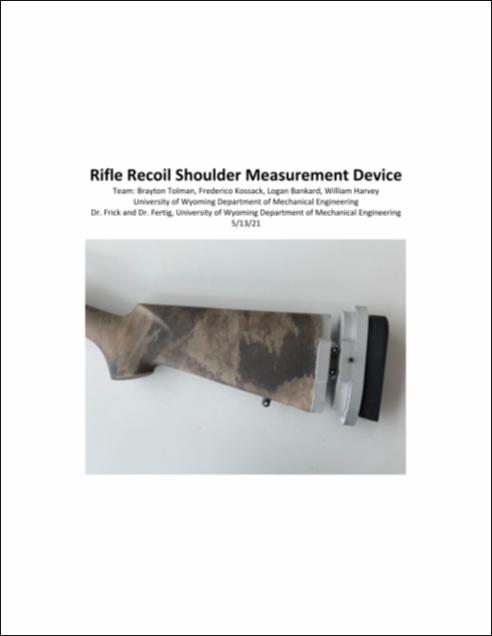

Rifle Recoil Shoulder Measurement Device
Kossack, Frederico Miguel de Oliveira Silva Matias
Kossack, Frederico Miguel de Oliveira Silva Matias
Citations
Altmetric:
Abstract
Description
The origin of
this project came from Dr. Frick’s and Dr. Fertig’s desire to design a rifle
stock that would reduce recoil felt on the shoulder of the shooter. In order to
begin manufacturing that stock, Dr. Frick and Dr. Fertig would need a device
that could measure this felt recoil. Our clients also desired a system that could
be used to test different recoil pads, so they could examine which pad would
produce the lowest peak force. The objective of this project is to produce a
device that can quantify the recoil that a shooter experiences when firing a
rifle. This device must be able to handle a maximum force of 2000lbs and be
able to test different recoil pads. The approach that was taken was to build upon
a previous design, that was manufactured by our clients and to improve upon it.
Some improvements that were made to the previous model were the addition of a
second load cell to the rig to ensure stability, as well as to account for
moments; using thicker plates for better strength; and adding a 3D printed band
to the aluminum plates to ensure the load cell cords did not move or fall out
when the gun is being fired. The project was a team effort, but this submission is an independent affair.
